Portable Toilets

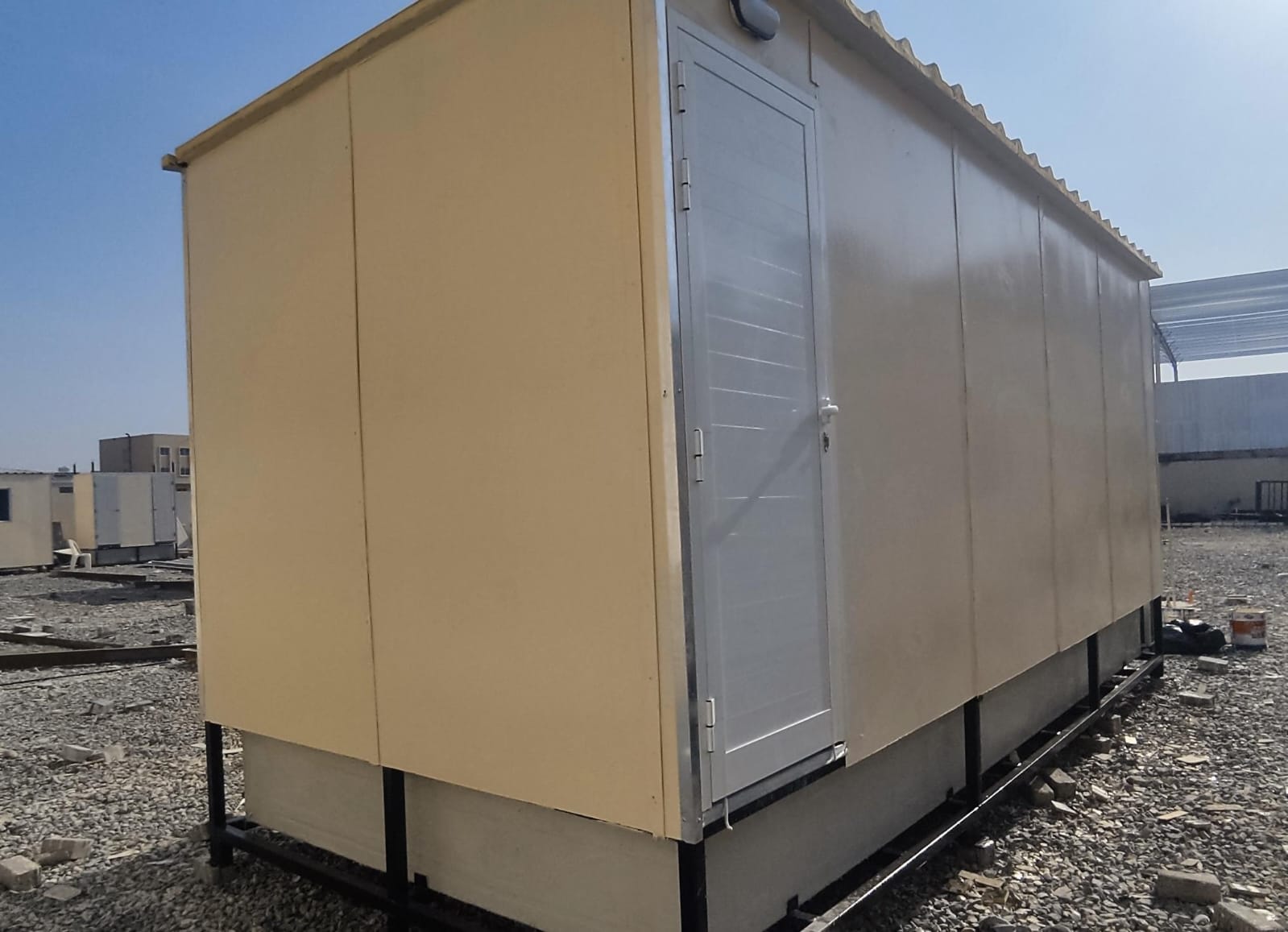

Custom made Portable Six Cabin Toilet with waste and water tanks
Abu Dhabi
6m L x 2.5m W x 3m H
Project Gallery & Video
About Project
Custom made Portable Six Cabin Toilet with waste and water tanks. Base Frame: The Steel Chasis Frame shall be constructed from Tubes with central runner and cross members.
Project Description
Custom made Portable Six Cabin Toilet with waste and water tanks. Designed for heavy usage with a robust steel chassis frame. Equipped with high-quality insulation including 50mm thick Rock-wool for walls and Polyurethane Aluminum Sandwich panel for the roof. Includes a common area and 6 separate cabins with European W/C.
Project Highlights
- Custom made Portable Six Cabin Toilet
- Base Frame with Steel Chasis and Tubes
- 50mm thick Rock-wool/Foam insulation 30kg/m3 density
- 50mm Polyurethane Aluminum Sandwich panel Roof
- 6 Cabins with W/C (European) and spray hose
- Common Area with 3 Washbasins and 3 Urinals
- Split AC 1.5ton, LED Lights, Exhaust Fans
- 1400 Gallons Waste Tank built-in
Structure & Build Specs
Base Frame
- Steel Chasis Frame constructed from Tubes
- Central runner and cross members
- Wire brushed and protected with one coat primer
Insulation
- External Walls: 06 mm thick cement board finished with weather proof emulsion paint
- Internal Walls: 06 mm thick cement board finished with weather proof emulsion paint
- Wall Insulation: 50mm thick Rock-wool/Foam insulation 30kg/m3 density
Roof
- 50mm Polyurethane Aluminum Sandwich panel
- Exterior flat and interior flat – Colour : White
- Aluminium/GI Polyester coated sheets, steel supports on the back side panel
- Al/GI Outer thickness – 0.05mm
- Material Thickness: 26 guage, Top colour: RAL 9002
- Insulation: PU – 35Kg/m3, Thickness: 50mm
Toilet Partition
- 6 Cabins

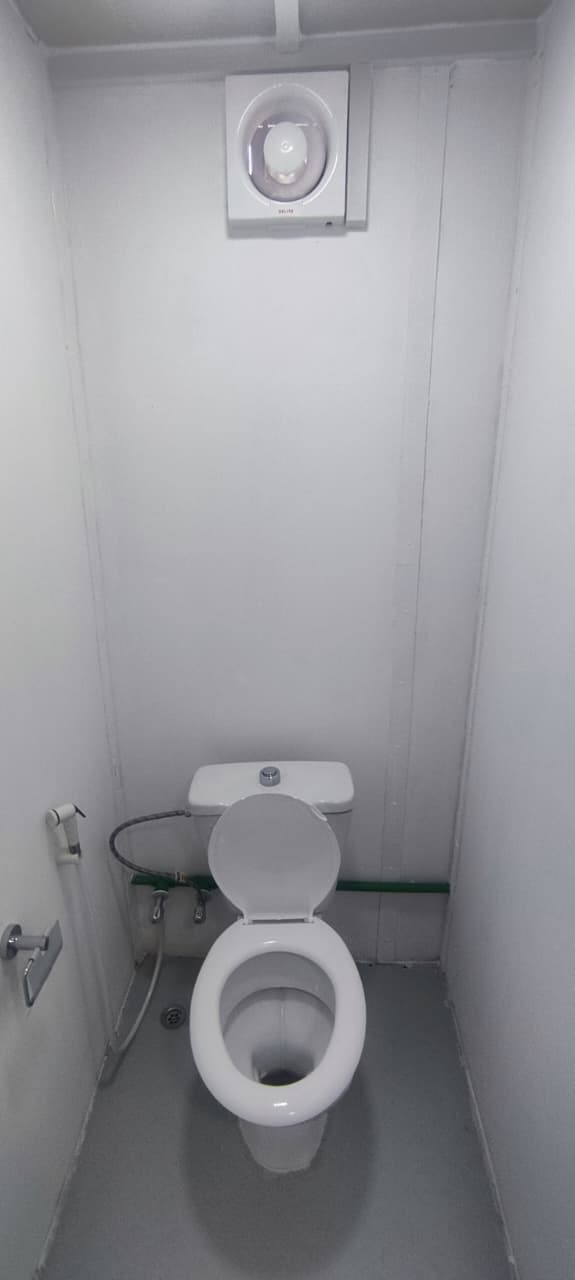

- 1 W/C (European) with spray hose and tissue roll dispenser per cabin
Common Area

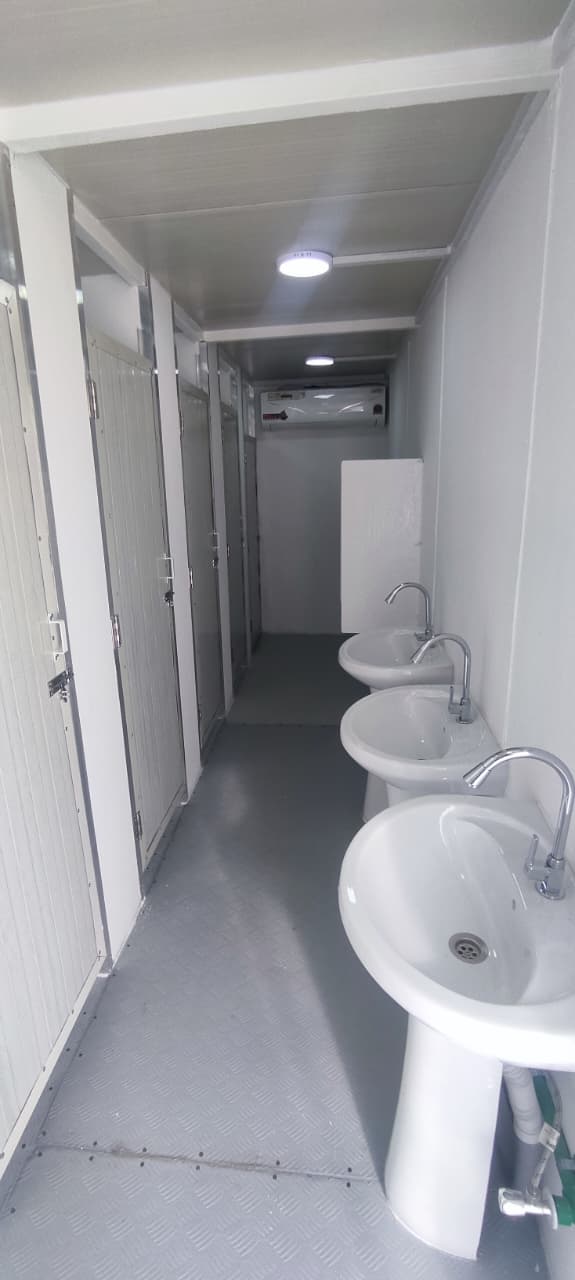

- 3 x Washbasin with stand and tap

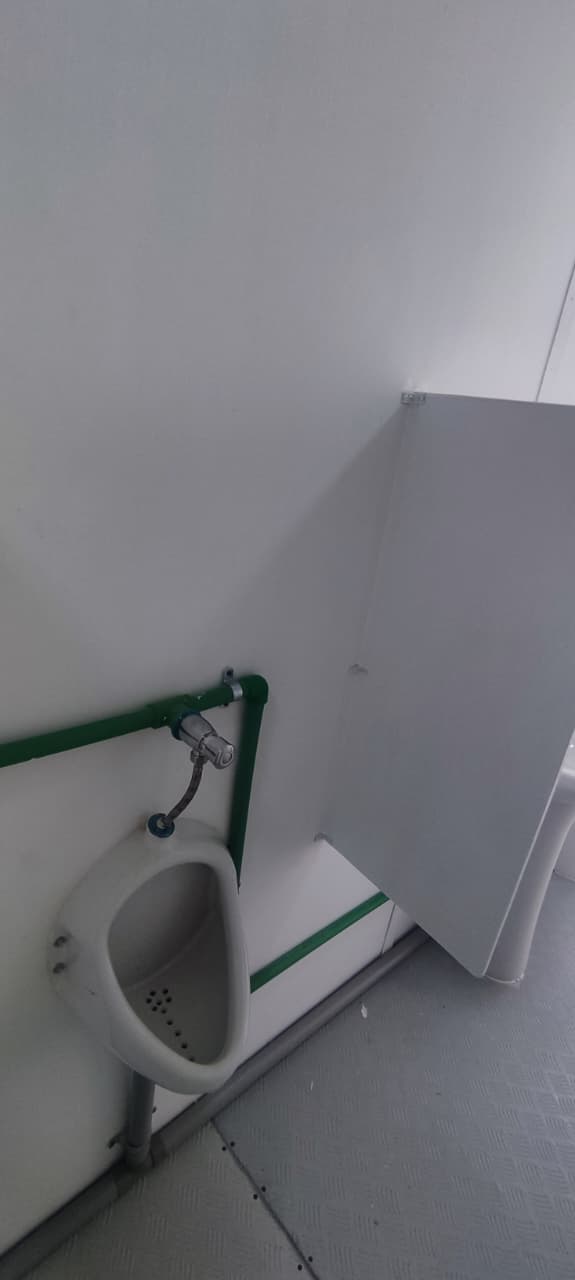

- 3 x Urinal with push flush
Electricals
- Fluorescent LED Lights
- 1 Exhaust Fan per cabin
- Split AC: 1.5ton (Hisense or equivalent)
- Switches and 32A Power inlet
Flooring & Doors
- GRP flooring on top of 18mm Cement Board with floor drain
- 1 x Aluminum Door Heavy Duty (Main door)
- 1 x Aluminum/GI Sandwich panel door per cabin
Tanks & Weight
- Water Tank: Nil. Provision for water inlet connection
- Waste Tank: 1400 Gallons with 3inch gate valve and 4inch sewage removal pipe
- Waste Tank built-in steel mounted frame underneath, anticorrosive painting inside
- Weight: Approximate 5 Ton
Product used in this project: Custom Prefab Toilet
