Custom Prefab Open Room Cabin | Dubai, UAE
Project Gallery
About Project
This project features the design, fabrication, and installation of a custom prefab open room cabin measuring 6m L x 2.4m W x 2.4m H. Built for a location in Dubai, UAE, the cabin combines a robust tubular steel chassis with premium insulation and executive finishes including GFRP exterior lining and parquet flooring.
Project Description
The custom open cabin was engineered for maximum durability and aesthetic appeal. The structural base utilizes a steel tube chassis with protective primer, paired with 50mm Rock-wool wall insulation and a 50mm PU sandwich panel roof. The interior is finished with gypsum board and super white emulsion, while the exterior boasts a glossy GFRP sheet finish.
Project Highlights
- Steel Chassis Frame with central runner and cross members
- 06 mm thick cement board finish with GFRP glossy sheet lining
- 12 mm thick gypsum board interior with super white emulsion
- 50mm Rock-wool insulation (30kg/m³ density)
- 50mm Polyurethane Aluminum Sandwich panel roof
- Parquet/Vinyl flooring over 18mm Marine plywood
- 1 x Heavy Duty Aluminium Door
- Full electrical setup with LED and exterior flood lights
Structure & Build Specs
Base Frame
- Steel Chassis Frame constructed from Tubes
- Central runner and cross members
- Wire brushed and protected with one coat primer
Walls & Insulation
- External: 06 mm thick cement board finish
- External: GFRP glossy sheet lined outside for elegant executive finish

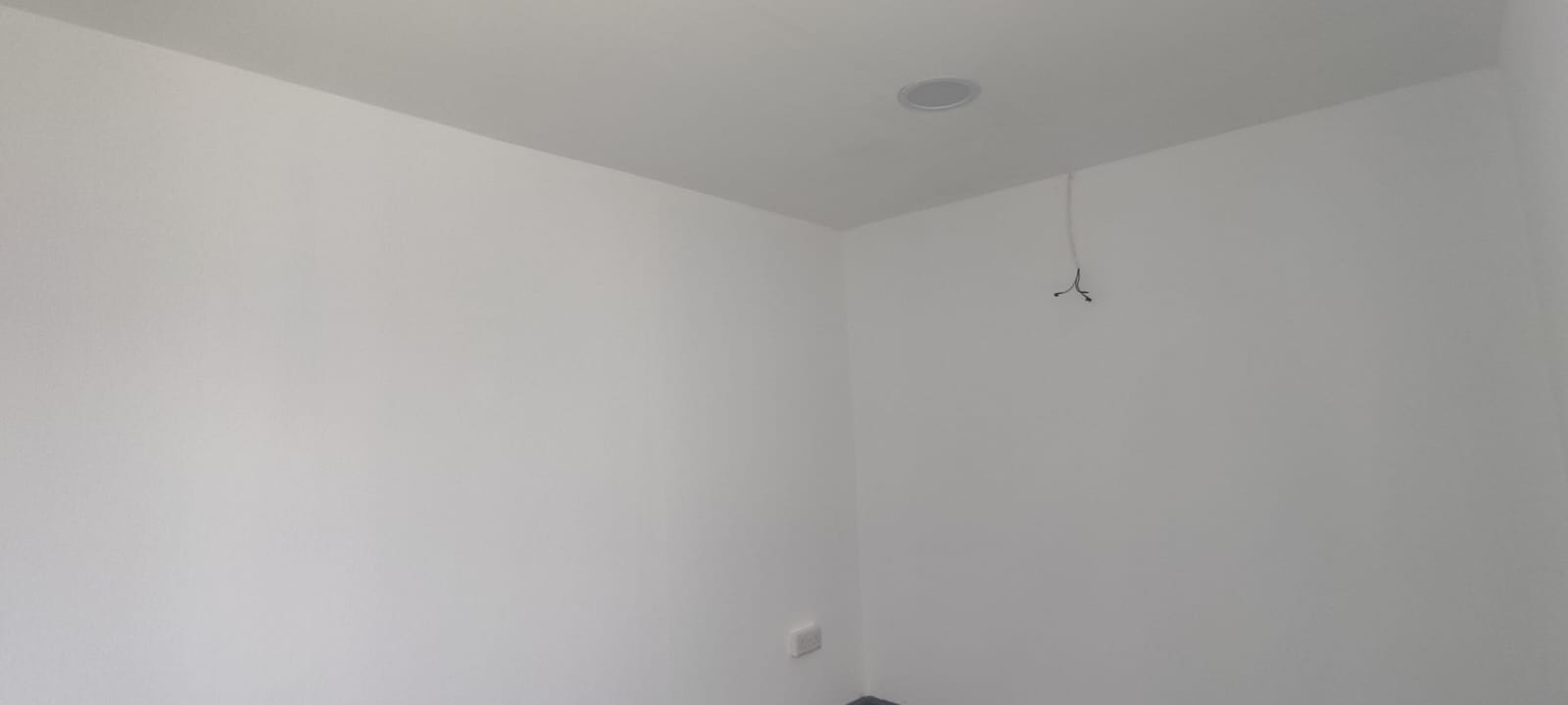

- Internal: 12 mm thick gypsum board finished with super white emulsion
- Insulation: 50mm thick Rock-wool insulation (30kg/m³ density)
Roof
- 50mm Polyurethane Aluminum Sandwich panel
- Exterior and interior flat – Colour: White
- GI Polyester coated sheets with steel supports
- Galvanized Steel, Thickness: 26 gauge (Outer GI thickness – 0.05mm)
- PU Insulation: 35Kg/m³, Thickness: 50mm, Color: RAL 9002
Flooring
- 18mm Marine plywood flooring base
- Parquet/Vinyl Flooring lined on top
Electricals & Doors
- 1 x Aluminium Door Heavy Duty
- Fluorescent LED Lights
- DB, ELCB, Power Inlet main- 16Amp
- Flood lights exterior
- Split A/C Provision

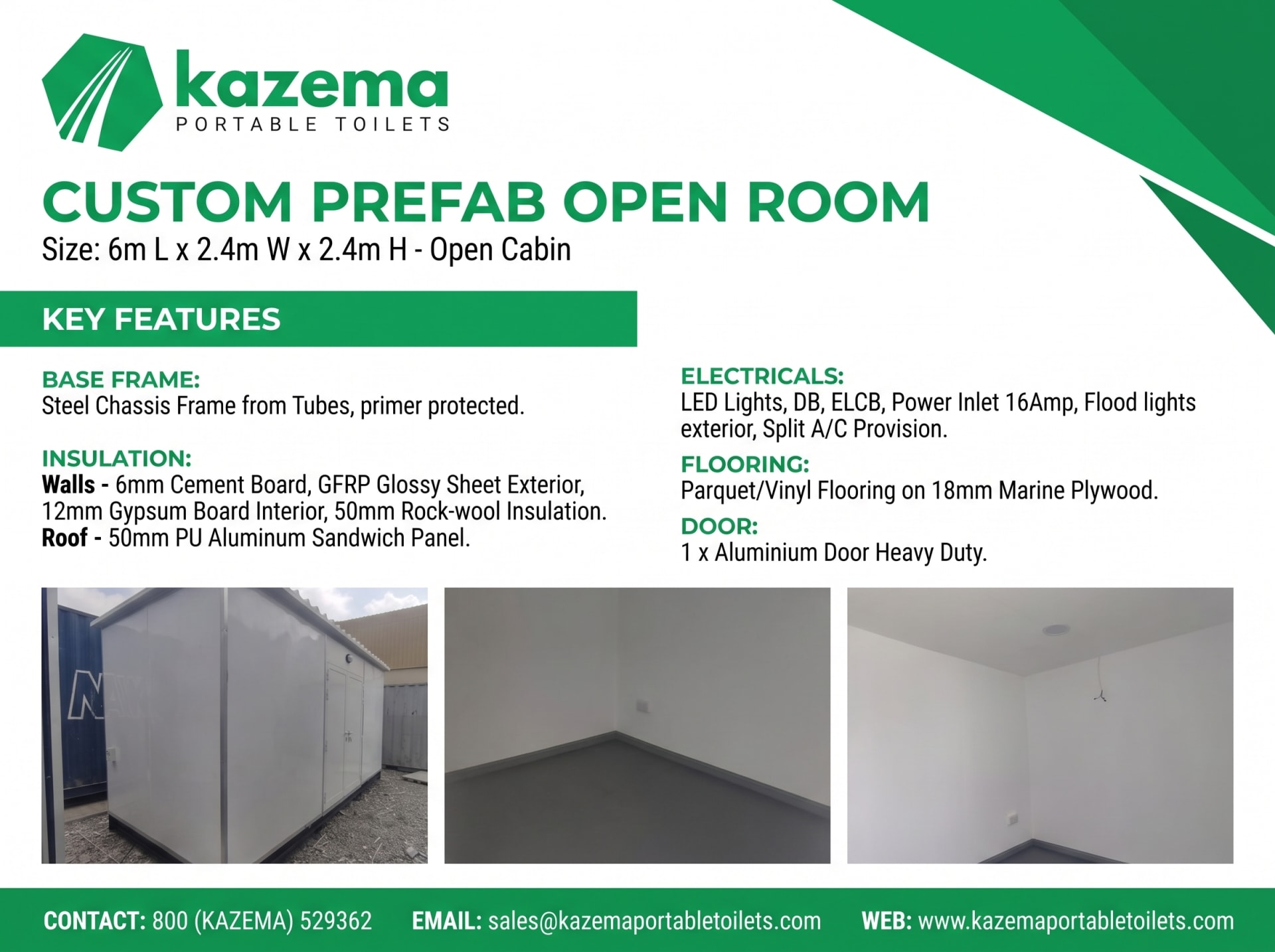

Product used in this project: Custom Prefab Open Room
