Portable Toilet Western with Built-in Water & Waste Tanks (500L) | Asab, Abu Dhabi, UAE
Project Gallery
About Project

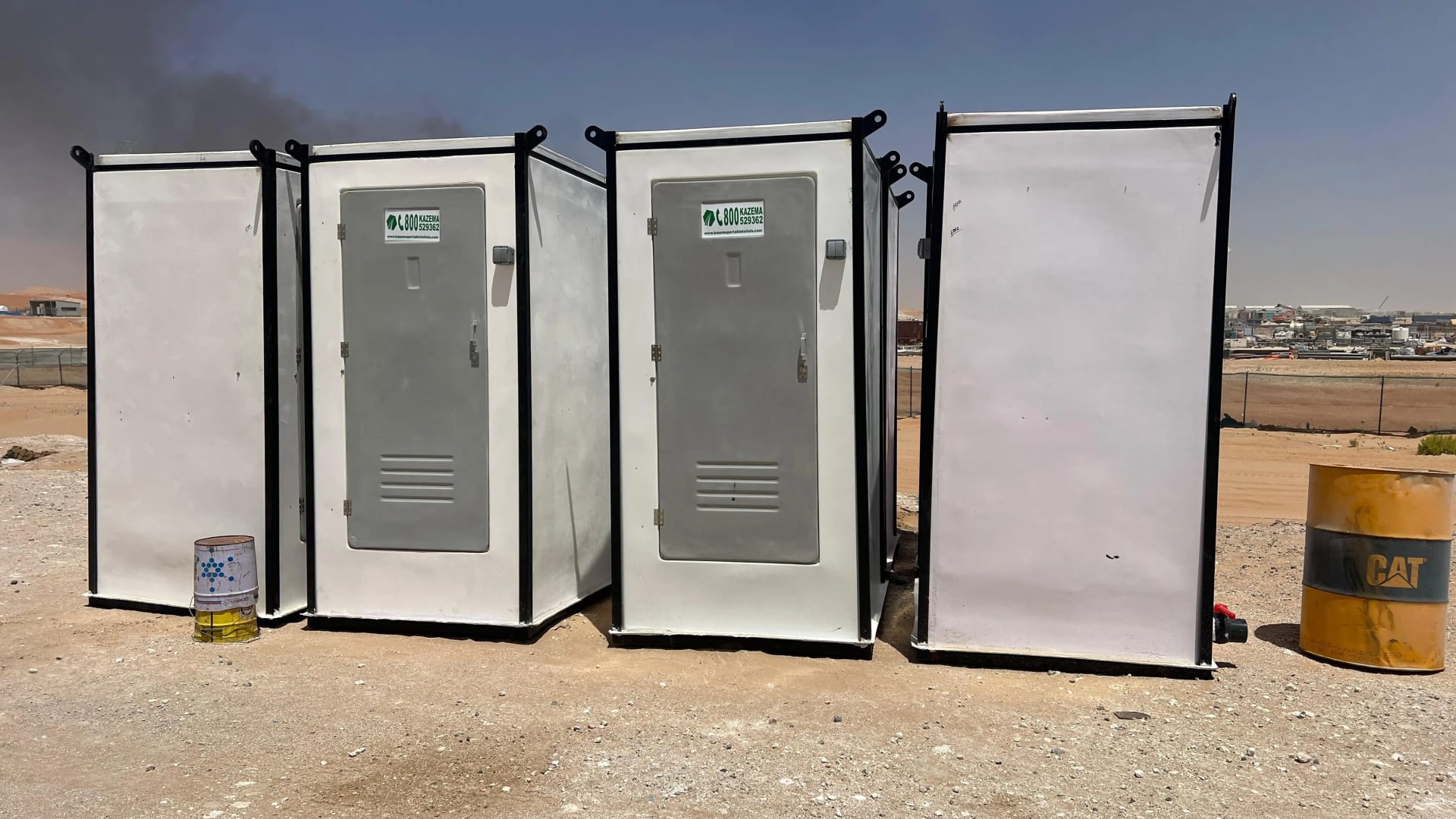

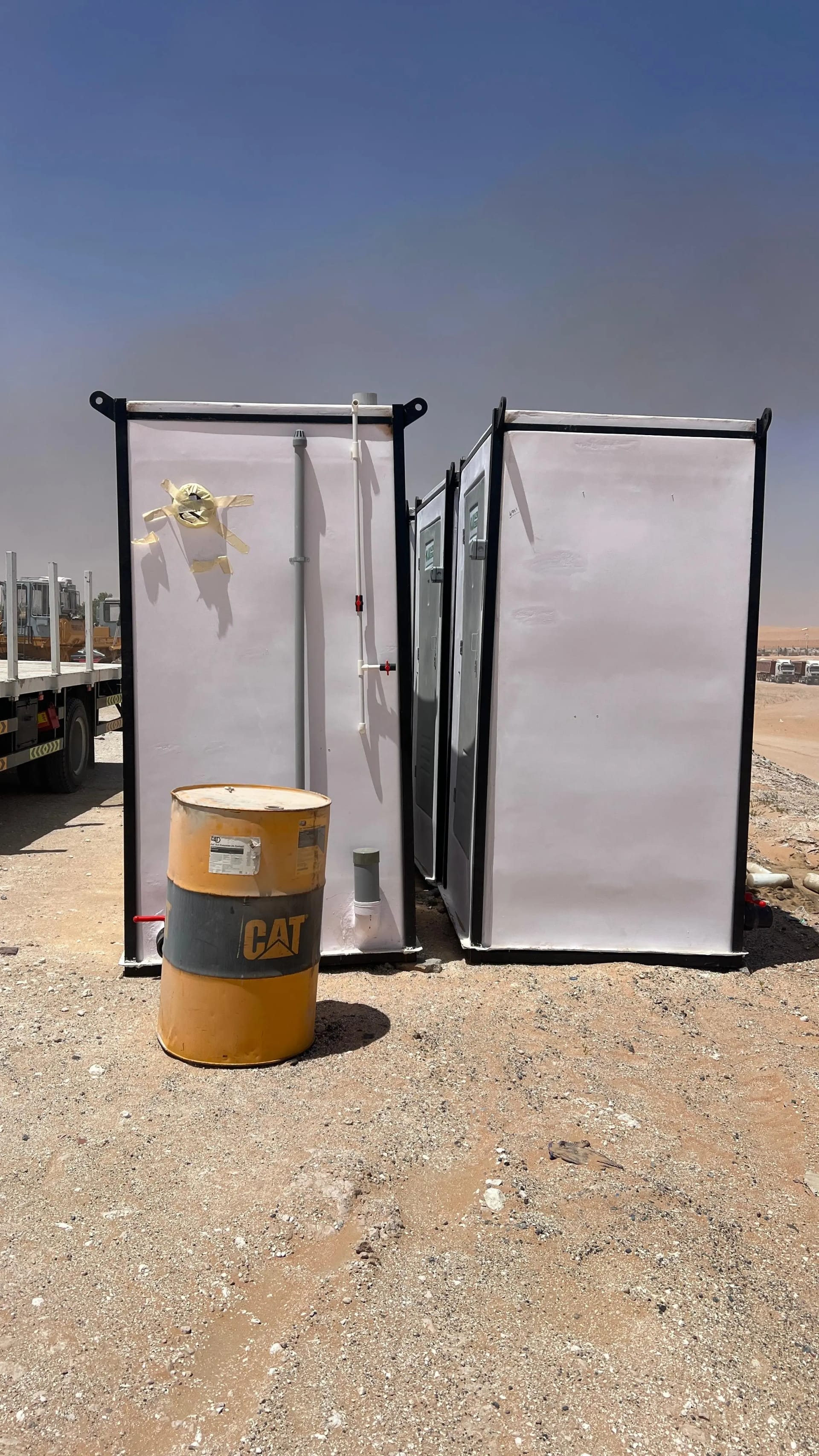

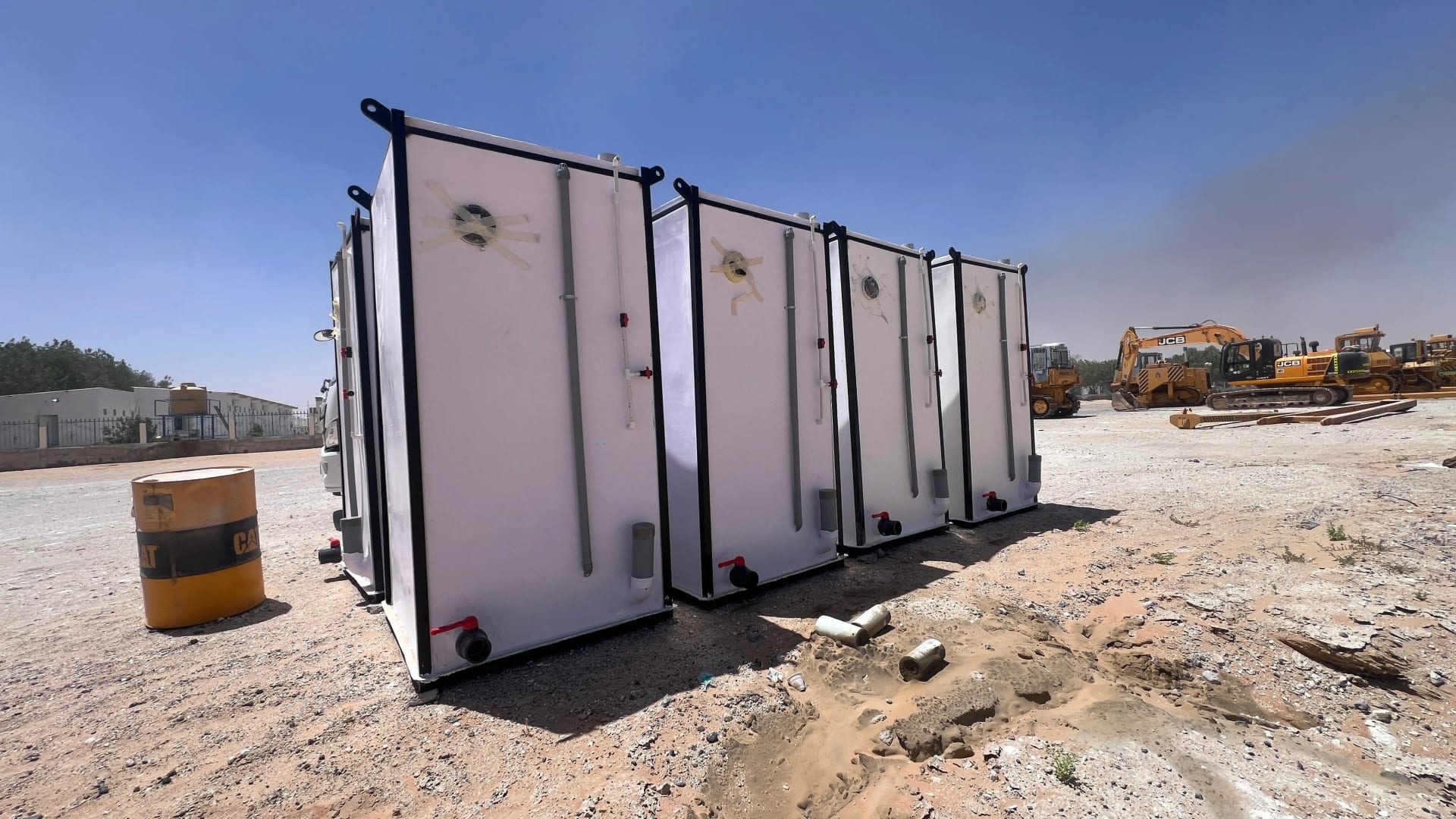

This Portable Toilet Western with built-in tanks was supplied for deployment in Asab, Abu Dhabi, UAE. The unit is designed for construction camps, remote workforce facilities, oil & gas sites, and outdoor operational zones where reliable sanitation is required. The structure is manufactured using high-quality GRP material with reinforced framing, ensuring resistance to harsh UAE weather conditions, heat, and continuous outdoor usage. The unit is delivered as a fully assembled, ready-to-use portable sanitation system with integrated plumbing, electrical fittings, and water/waste storage tanks.
Project Description
This Portable Toilet Western with 500L waste tank is a durable, efficient, and fully self-contained sanitation unit designed for demanding field conditions in Abu Dhabi and across the UAE. It delivers long-term reliability, hygienic operation, and easy deployment for industrial and construction applications.
Project Highlights
- Reliable off-grid sanitation solution
- Strong GRP build suitable for harsh UAE conditions
- High-capacity waste system reducing maintenance frequency
- Comfortable Western-style toilet configuration
- Fully operational plug-and-use deployment
Structure & Build Specs
Unit Specifications
- External Size: 48 x 48 x 94.4 inches (122 x 122 x 240 cm)
- Material: High Quality Glass Reinforced Plastic (GRP)
- Roof: Non-translucent laminated roof
- Total Weight: 286 lbs / 130 kg
- Frame: Integrated structural frame with lifting pad eye points
Toilet Area Configuration
- Western Type W/C
- Fresh Water Flush System
- Wash Basin with Tap
- Shattaf / Hand Spray System
Electrical System
- LED Tube Light
- Exhaust Fan for ventilation
- Waterproof Electrical Switches
- Non-concealed Wiring System
Plumbing System
- 0.5-inch PVC water inlet pipe with gate valve
- 4-inch sewage outlet pipe (UPVC)
- 1.5-inch grey water drainage pipe (UPVC)
- 1.5-inch air vent pipe for pressure balance
Integrated Tank System
- Water Tank Capacity: ~87 US Gallons / 330 Litres
- Waste Holding Tank Capacity: ~132 US Gallons / 500 Litres
Structural & Material Build
- Corrosion-resistant GRP body
- Reinforced internal frame support
- UV-resistant exterior finish
- Strong load-bearing base with lifting points
