Portable Toilet without tanks - having provision for water inlet and waste outlet connections
Project Gallery
About Project

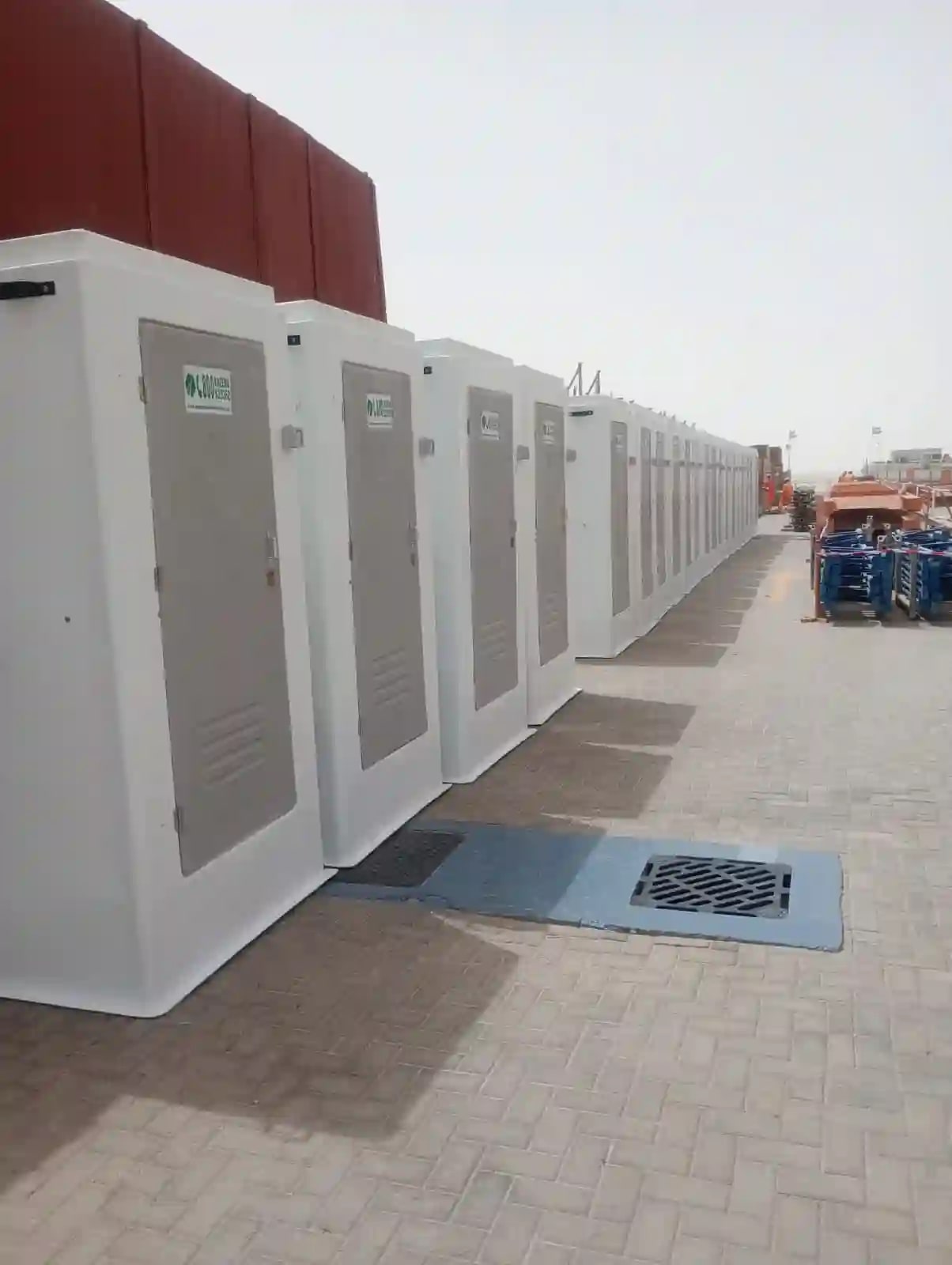

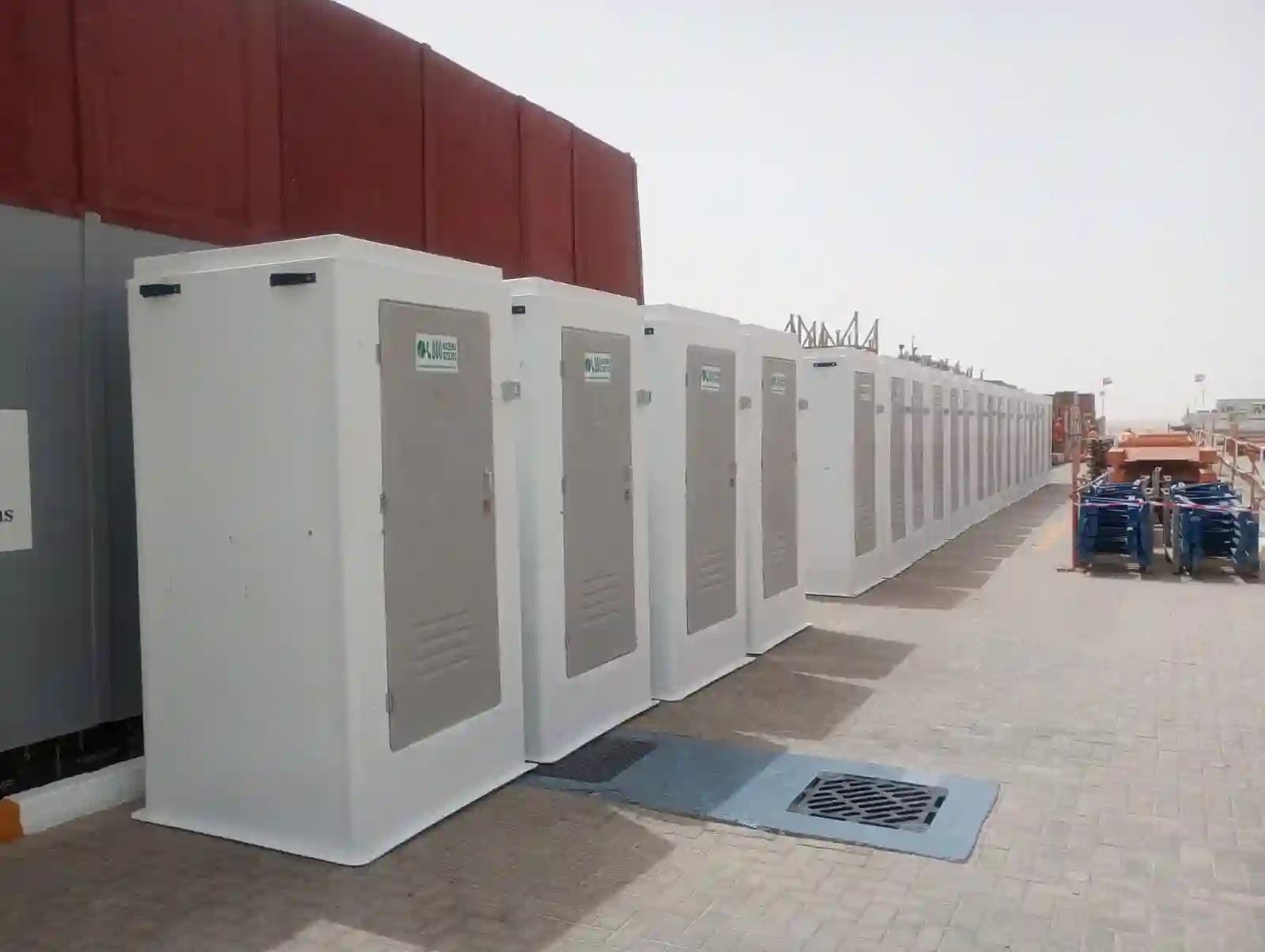

This project features a portable toilet designed without built-in water and holding tanks, instead offering direct provisions for water inlet and waste outlet connections. The unit is constructed from High Quality Glass re-inforced Plastic with a non-translucent laminated roof, ensuring durability and privacy. It was deployed in Al Markaz, Abu Dhabi.
Project Description
The portable toilet unit measures 48 x 48 x 94.4 inches and weighs 130 kgs. It comes fully equipped with a Western type W/C, fresh water flush, wash basin with tap, and a Shattaf/hand spray. Electrical and plumbing installations are integrated for immediate connection to on-site facilities.
Project Highlights
- High Quality Glass re-inforced Plastic material
- Non-Translucent laminated roof
- Provision for water inlet and waste outlet connections
Structure & Build Specs
Unit Specifications
- Size: 48 x 48 x 94.4 H inches / 122 x 122 x 240 H cm
- Material: High Quality Glass re-inforced Plastic
- Roof: Non-Translucent laminated roof
- Weight: 286 pounds / 130 kgs
- Lifting Hooks: 4nos included
Toilet Area Configuration
- W/C - Western type W/C
- Flush - Fresh water flush
- Wash basin with tap
- Shattaf / Hand spray
Electrical System
- LED Tube Light
- Exhaust fan
- Water proof switches
- Non concealed wiring
Plumbing System
- 0.5 inch non concealed PVC pipes for water inlet connection with gate valve
- 4 inch sewage UPVC pipe for waste outlet
- 1.5 inch grey water UPVC pipe for waste outlet
Tank System
- Water Tank: Nil
- Holding Tank: Nil
