Portable Trailer Toilet Western with both tanks 500Ltrs
Project Gallery
About Project
This project features a fully functional portable toilet mounted on a trailer for maximum mobility, deployed in Madinat Zayed, Abu Dhabi. Designed for easy transportation and immediate use, the unit includes both fresh water and sewage holding tanks, ensuring complete off-grid sanitation.
Project Description

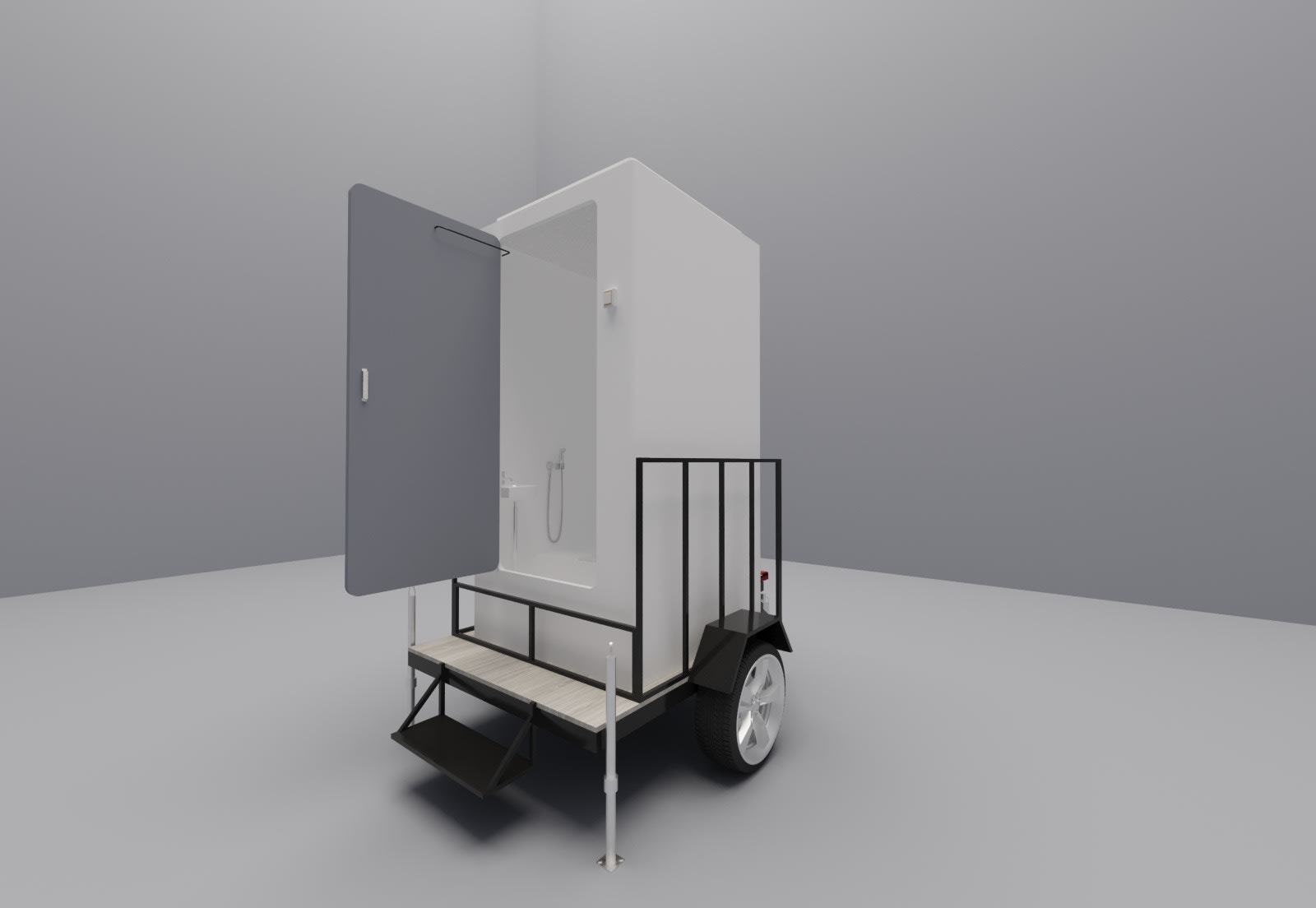

The portable toilet unit measures 48 x 48 x 94.4 inches and is constructed from High Quality Glass re-inforced Plastic. It is securely mounted on a trailer equipped with a 2-tyre mount, suspension, closed mudguards, and adjustable rear legs for stability. The setup includes a 330-liter fresh water tank and a 500-liter sewage holding tank, making it highly self-sufficient.
Project Highlights
- Western type W/C with fresh water flush
- Integrated 330L water tank & 500L holding tank
- Trailer mounted with 2 tyres, suspension, and adjustable rear legs
- Wash basin with tap and Shattaf / Hand spray
Structure & Build Specs
Unit Specifications
- Size: 48 x 48 x 94.4 H inches / 122 x 122 x 240 H cm
- Material: High Quality Glass re-inforced Plastic
- Roof: Non-Translucent laminated roof
- Toilet Weight: 286 pounds / 130 kgs
- Air vent-pipe included
Trailer Details
- 2 Tyre mount
- Suspension mounted
- 2 Rear legs for stability (Adjustable)
- Closed mudguards
- Lights and indicators (not connected)
- Hook up on trailer body ready
Toilet Area Configuration
- W/C: Western type W/C
- Flush: Fresh water flush
- Wash basin with tap
- Shattaf / Hand spray
Electrical System
- LED Lights
- Exhaust fan
- Water proof switches
Tank & Plumbing System
- Water Tank: About 87 US Gallon / 330 Ltrs
- Holding Tank (Sewage): About 132 US Gallon / 500 Ltrs
- Water Inlet provision
- Waste outlet provisions
