Security Cabin With AC (Curved) in DIP Dubai UAE

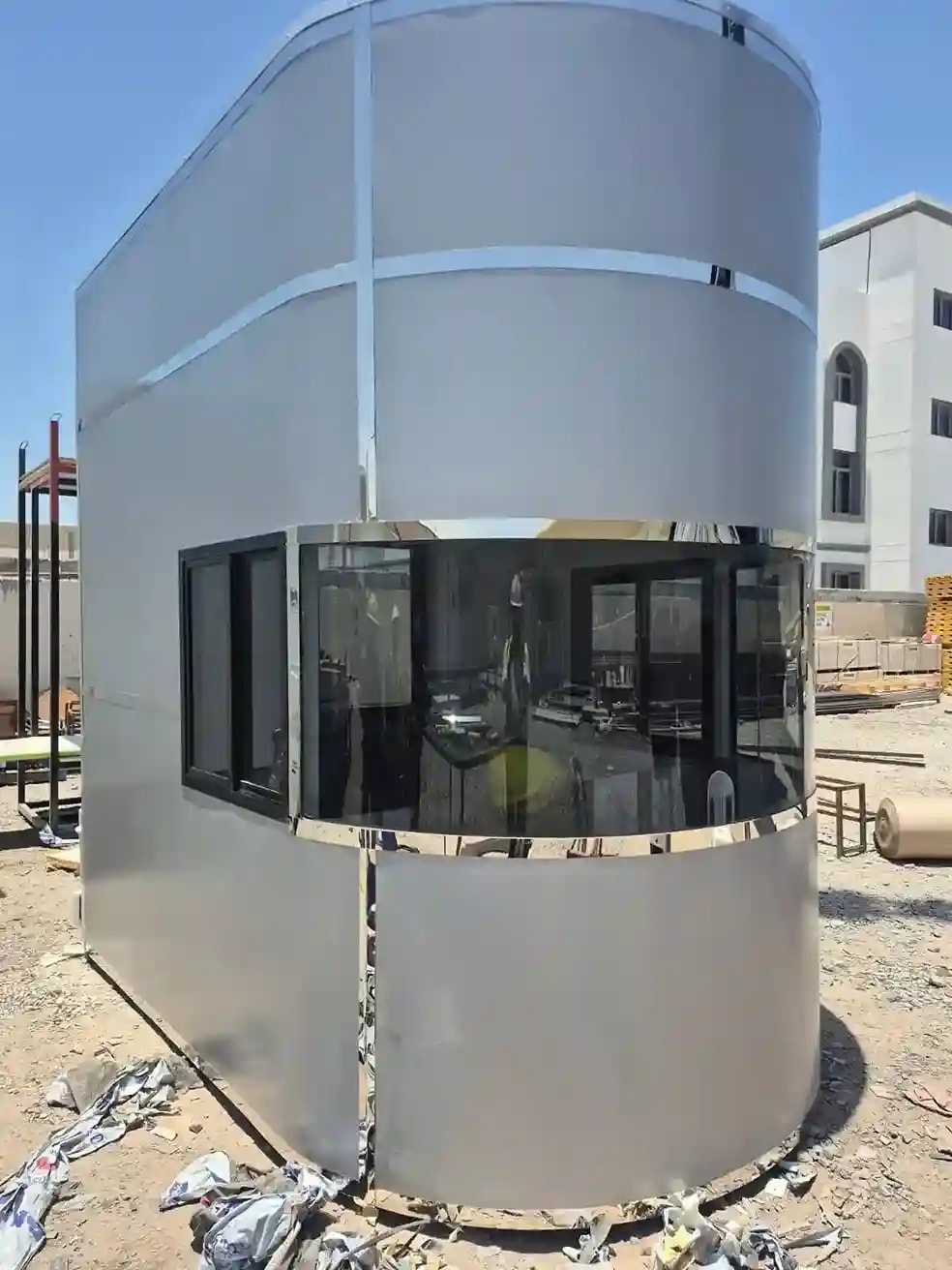

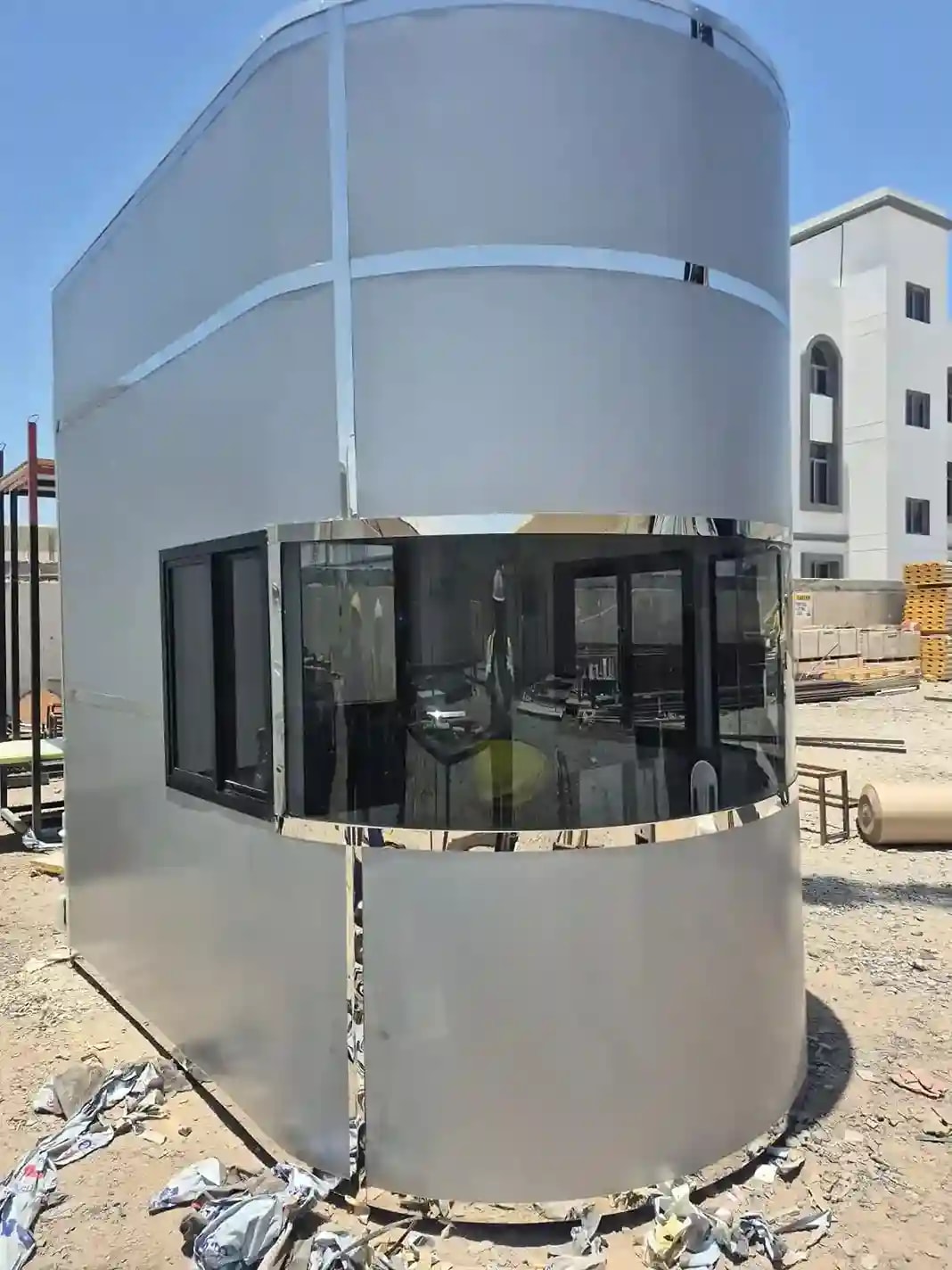

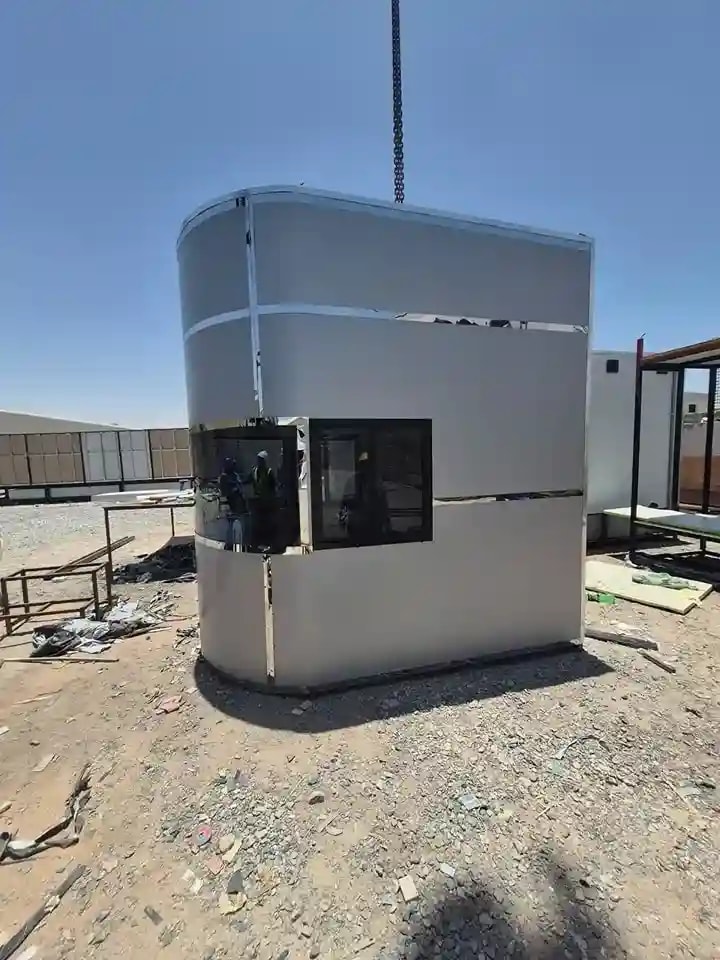

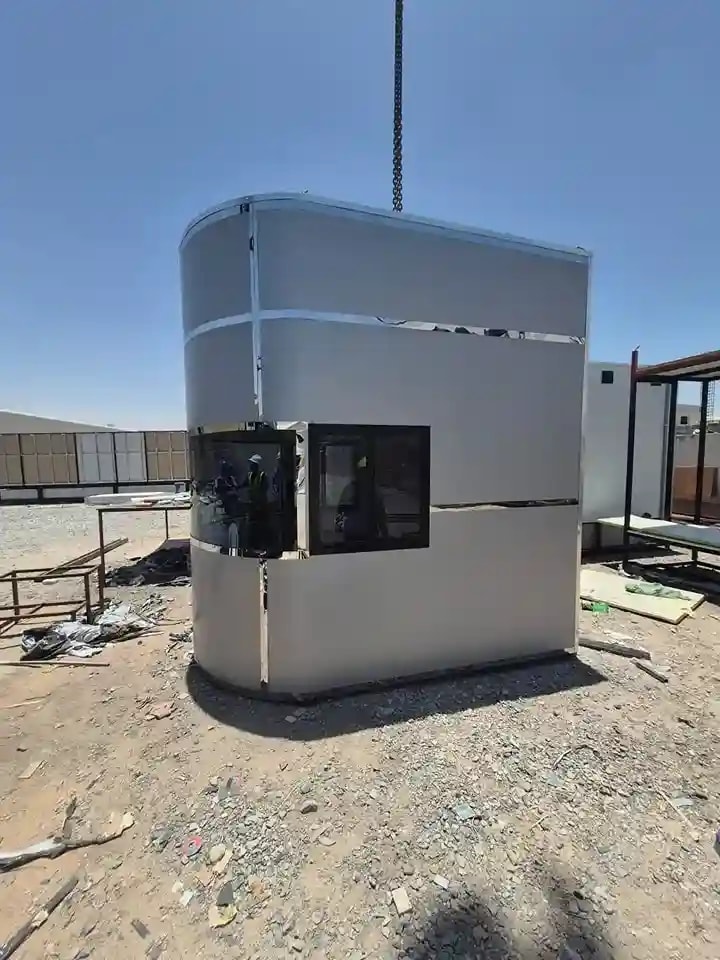

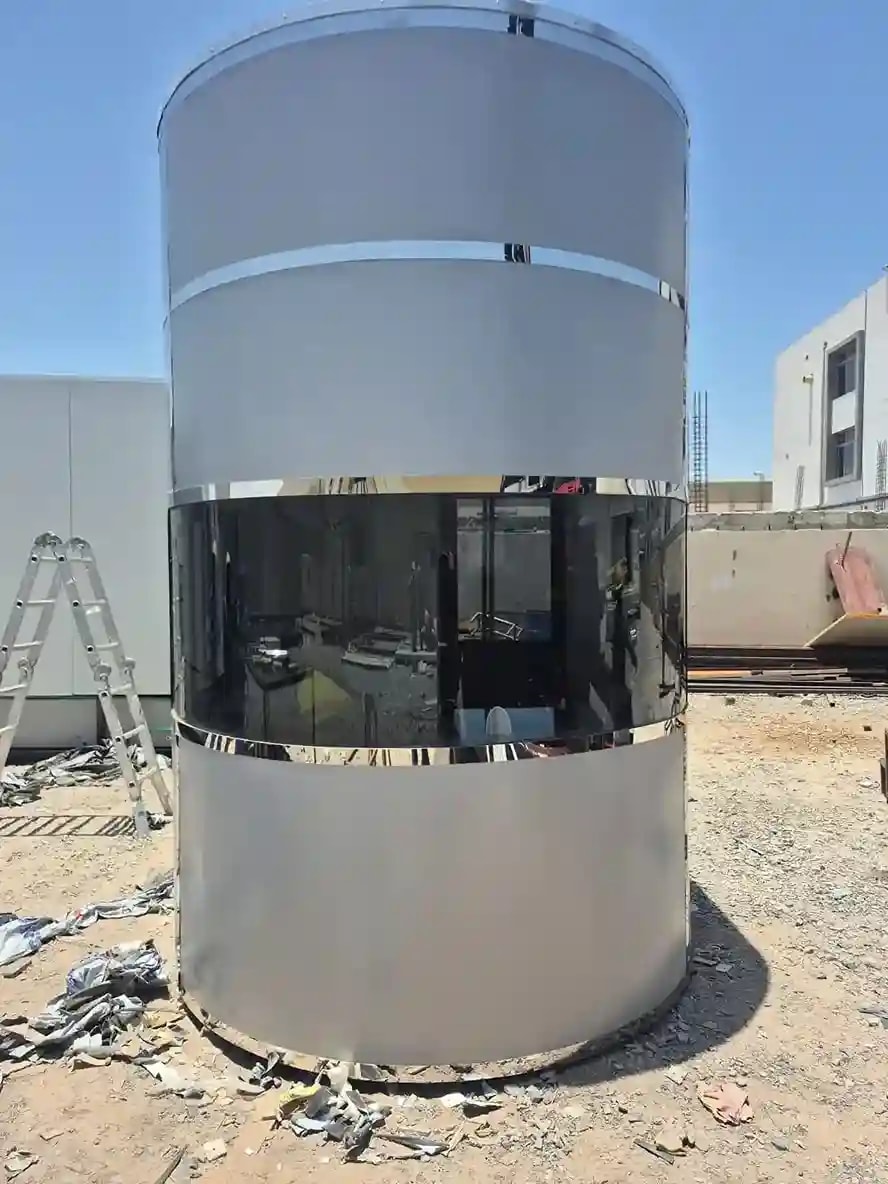

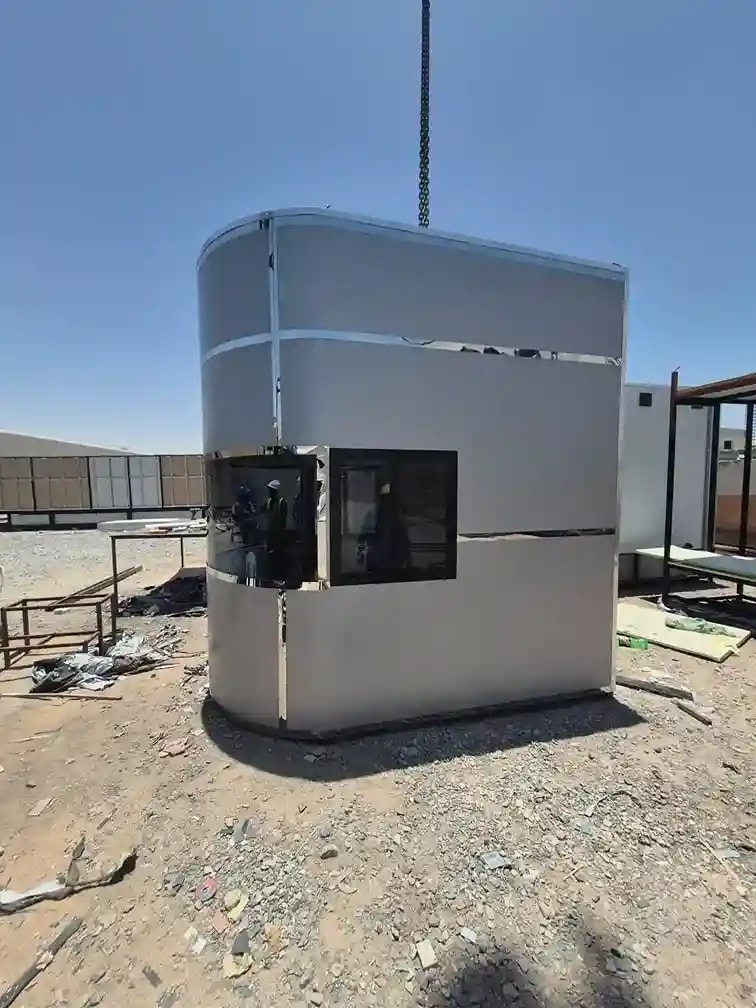

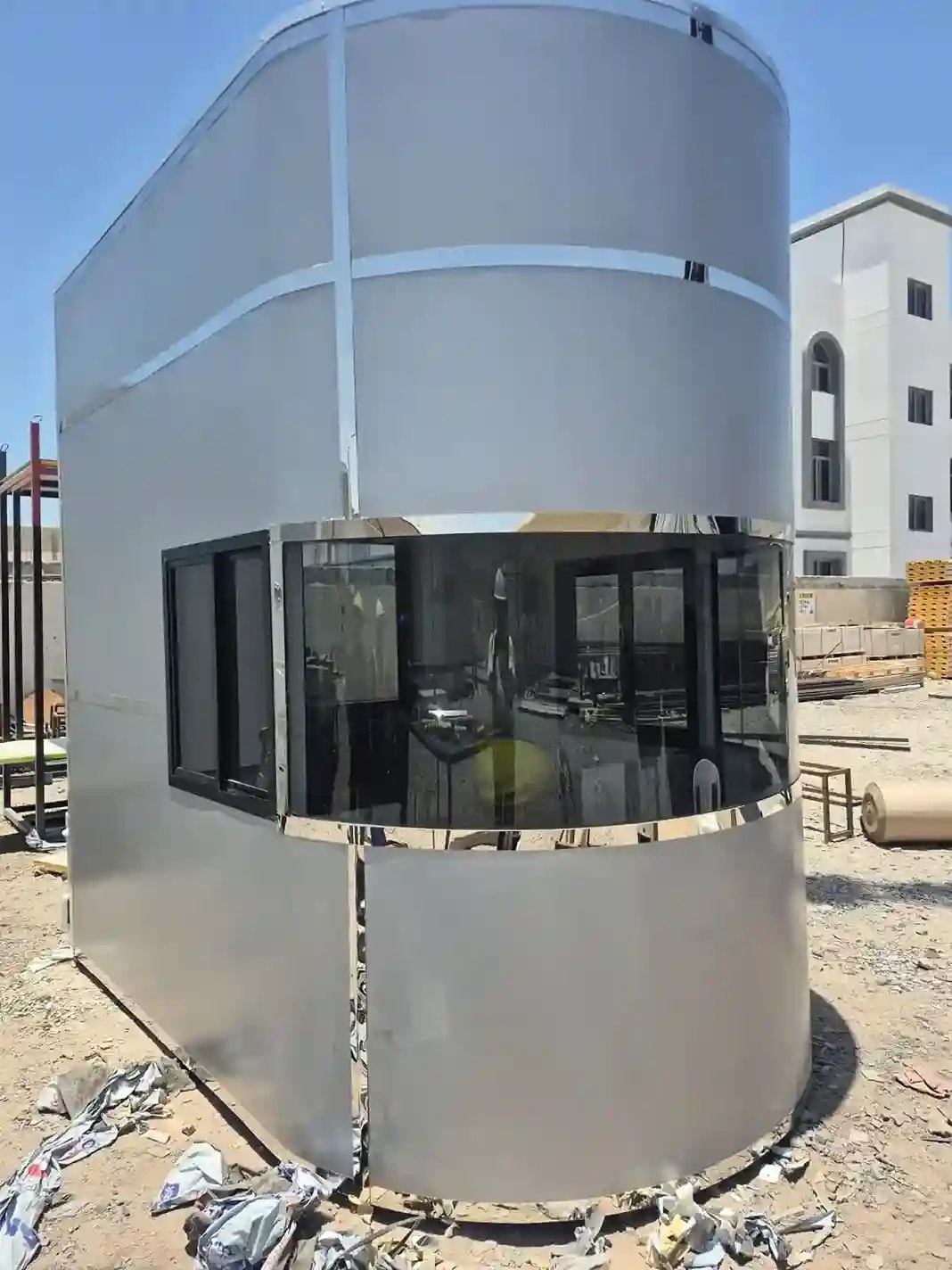

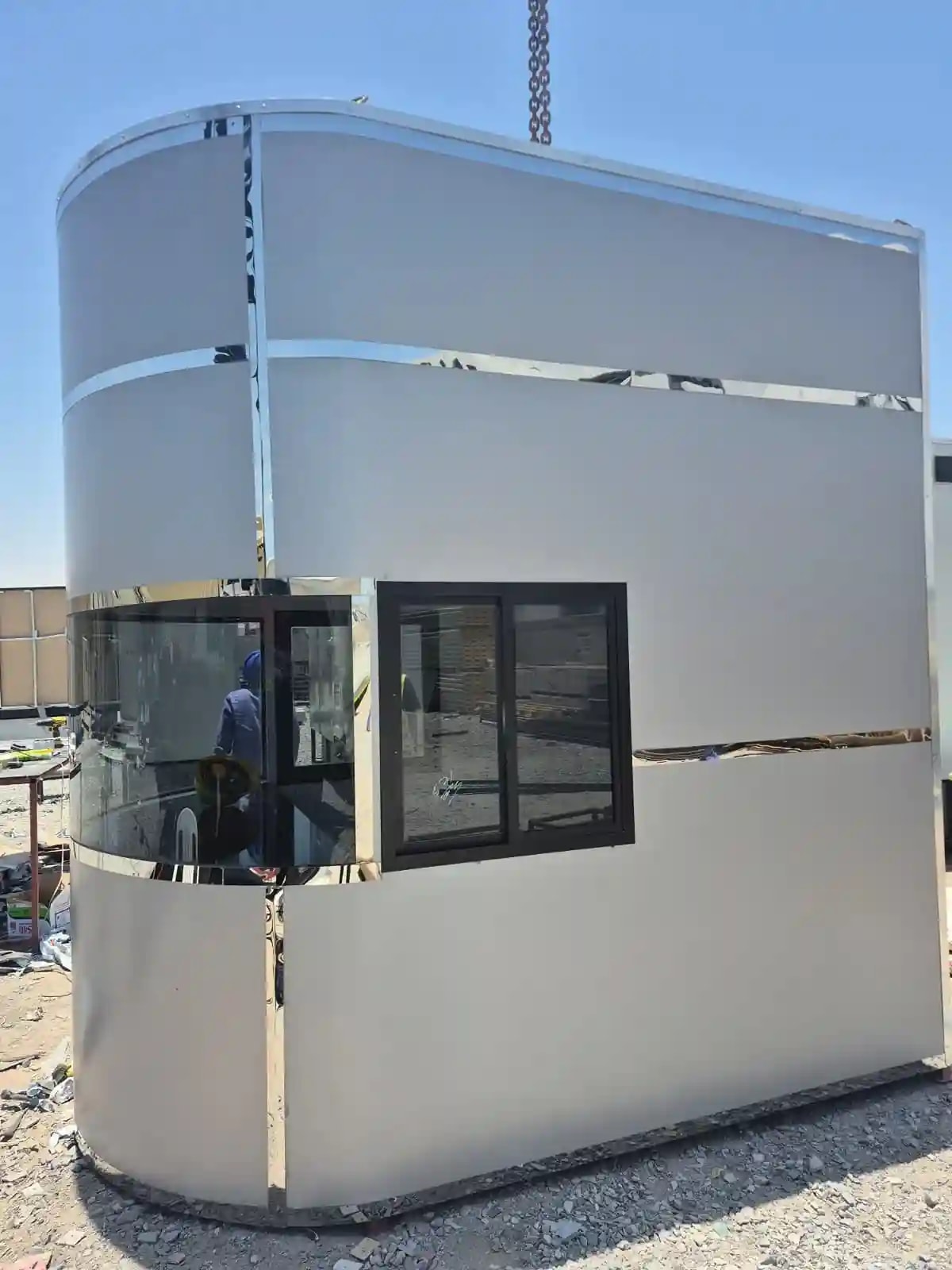

Project Gallery
About Project
This project involved the fabrication and installation of a custom curved security cabin equipped with integrated air conditioning for a facility located in Dubai Investment Park (DIP), Dubai. The client required a compact yet highly functional insulated security cabin suitable for access control, security monitoring, and operational supervision within an industrial environment. The unit was engineered using a reinforced steel frame structure combined with high-performance insulation materials to ensure durability and thermal efficiency under UAE weather conditions. The cabin was delivered as a fully finished ready-to-use modular unit complete with electrical systems, interior finishing, insulation, and split AC installation.
Project Description
The installed unit is a custom curved Security Cabin with AC (3m L x 2m W x 3.2m H) specifically designed for security operations, monitoring, and controlled site access management. The structure was fabricated using a heavy-duty steel chassis frame with tubular steel sections, central runners, and cross members for enhanced structural stability. All steel components were wire-brushed and coated with protective primer to improve corrosion resistance and long-term durability.
Project Highlights
- Strong thermal insulation suitable for UAE climate conditions
- Comfortable indoor environment with split AC system
- Modern curved design with enhanced front visibility
- Durable prefab structure for industrial and commercial applications
- Efficient use of compact interior workspace
- High-quality interior finishing with gypsum wall system
Structure & Build Specs
Base Frame
- Heavy-duty tubular steel chassis frame
- Central runner and cross member reinforcement
- Wire-brushed steel treatment
- Anti-corrosion primer coating for durability
Insulation & Wall System
- External Finish: ACP panels
- Internal Finish: 12mm gypsum board finished with super white emulsion paint
- Wall Insulation: 50mm Rockwool insulation (30kg/m³ density)
Roof & Ceiling System
- 50mm Polyurethane Aluminium/GI Sandwich Panel
- Exterior Flat & Interior Flat finish
- PU Insulation Density: 35kg/m³
- Insulation Thickness: 50mm
- False Ceiling: 12mm gypsum board with super white emulsion finish
Flooring System
- Vinyl flooring with skirting
- Installed over 18mm cement board flooring
Door & Window Configuration
- 1 × Aluminium powder-coated entrance door
- 2 × Side fixed cum sliding clear glass windows
- 1 × Front fixed curved clear glass window
Accessories Included
- Small white MDF table installed inside the cabin
Electrical Installation
- Fluorescent LED lighting inside
- Waterproof LED light outside
- Switches and plug points installed
- 32A main power inlet
- 1 × 1.5 ton split AC unit (Super General or equivalent)
